Dongfeng 6X4 20 tons 20000 liters mobile fire fighting water truck

Dongfeng 6X4 20tons 20000liters Mobile Firefighter Water TruckWater truck, is also called as the sprinkler, watering cart, water tank truck, water spray truck, water sprinkler truck, wanter tanker truck and multi-function green watering truck.The water truck is mainly used in city road, large factory area, army, landscape garden

Featured Products

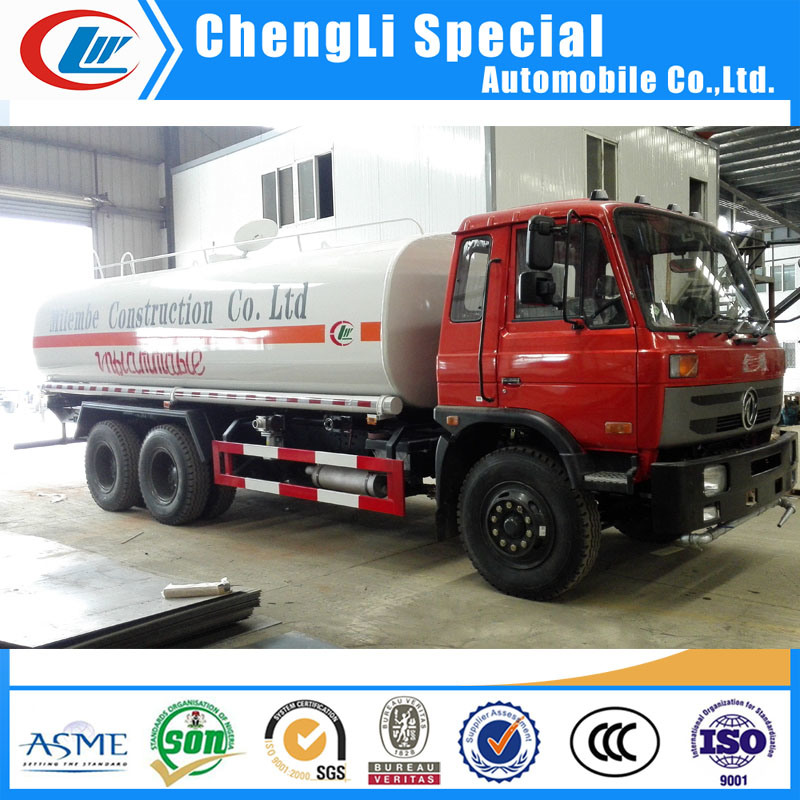

Dongfeng 6X4 20tons 20000liters Mobile Firefighter Water Truck

Water truck, is also called as the sprinkler, watering cart, water tank truck, water spray truck, water sprinkler truck, wanter tanker truck and multi-function green watering truck.

The water truck is mainly used in city road, large factory area, army, landscape garden and other
Departments for cleaning the pavement, sanitation, dust-proof, watering, and spraying farming
Chemicals for beautify the environment. From another point, while being urgent, the sprinkler is also
Used as the fire fighting truck.

It have self-priming and self-draining function, can flush in front, water at rear and sprinkle at the tank's
Side. It is equipped with a working platform at rear with high pressure water cannon, which can be
Columnar, heavy rainfall, moderate rain and drizzling rain, equip with high power sprinkle water pump,
Self-priming pump can pump water from pool to tank, or join the truck with fire hydrant to fill water in tank

specification
Product NameDognfeng 6x4 watering truck
Product ModelCLW5251GSS3
Chassis model EQ1258KB3GJ
Payload18cbm
Curb weight(Kg)9005
Drive Model6x4
Drive TypeLeft-hand (optional)
Vehicle Body ColorRed,Yellow,white(Optional)
EngineBrandCummins
ModelB210-33
6 cylinder in-line with water cooling & inter-cooling
Displacement(L)5900
Max.Power(kW)155
Rated power Rev(RPW)2500
Maximum Torque(N*m)/Rev(r/min)700/1500
Fuel consumption L/100km23.7/diesel
ClutchModelΦ395 single diaphragm spring
TransmissionBranddatong or dongfeng
ModelDatong 6 speed( 6 forward and 1 reverse)
Or dongfeng 8 speed( 8 forward and 1 reverse)
Rear Axle(drive axle)-Model10 tons
(main reducer speed ratio:6.166)
Front Axle-Model5 ton
Cabin typeDongfeng one and half row
CabinRadio and so on,warmer,air condition (optional)
Wheelbase (mm)4350+1300
Wheel/TireTypeNylon tire
Model10.00-20
Tire number10+1
Oil TankVolume(L)300
DimensionsOverall (mm)9950×2490×3350
(L×W×H)Body  (CBM)20
TrackFront track(mm)1940
Rear track(mm)1860/1860
Body Q235 carbon steel
Axles loading (kg)7000/18000/18000
Front overhang/Rear overhang(mm)1245/3055
Approach/Departure Angle(°)28/10
No. of steel spring(front/rear)8/12
Max.speed(km/h)85
Max.slope of climb(%)30
Min.turning diameter(m)18
Mini.groud clearance240



Details
Dongfeng 6X4 20tons 20000liters Mobile Firefighter Water Truck
Dongfeng 6X4 20tons 20000liters Mobile Firefighter Water Truck

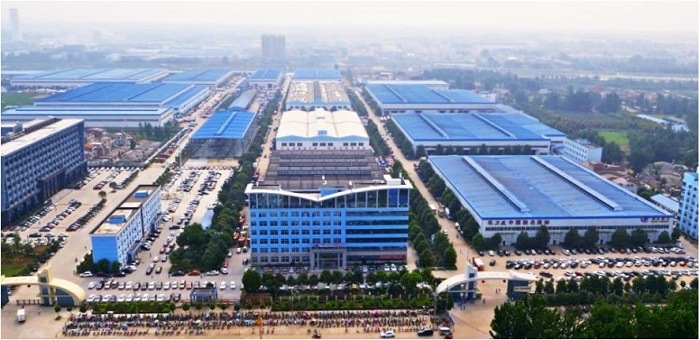

Company information
