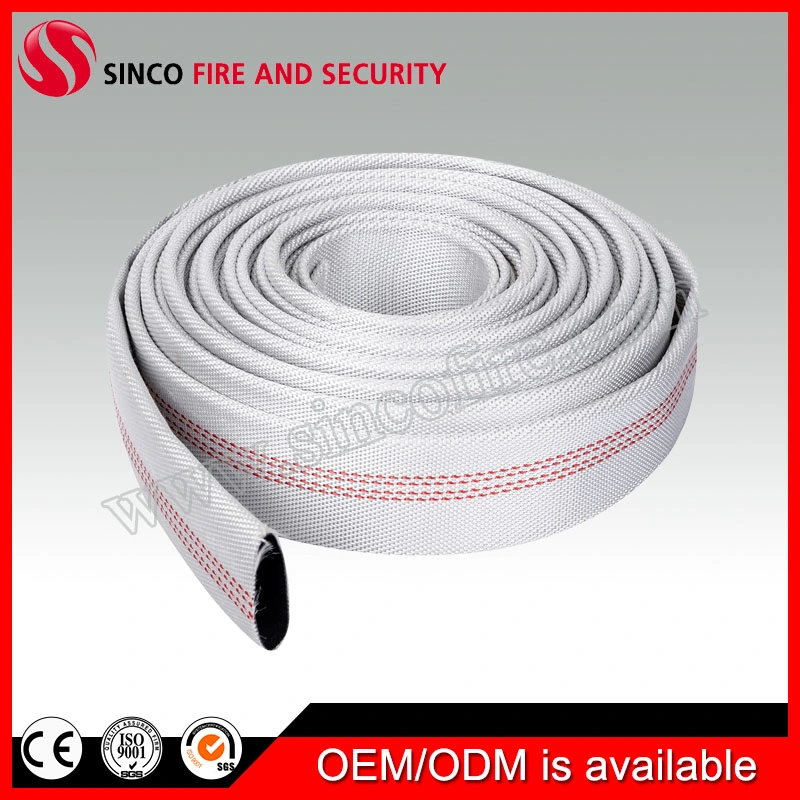

Fire Extinguisher Cabinets Hose Fire Hose Machine OEM Fire Hose
A fire hose is a high-pressure hose used to carry water or other fire retardant (such as foam) to a fire to extinguish it. Outdoors, it is attached either to a fire engine or a fire hydrant. Indoors, it can be permanently attached to a building's standpipe or plumbing system.
INNER
The fire hose lining could be PVC,Rubber,EPDM/PU/Synthetic Rubber.
The lining has even thickness, smooth and flat surface, no wrinkle and other defects.
Colors to be select: white, blue, red, black and other colors customized.
Advantages: light weight, wearing resistance, corrosion resistance, small flow resistance, durability, and easy winding.
JACKET
Fire hose jacket weaving: single jacket, warp: high strength polyester staple, weft: low elongation polyester filament, plain or twill weaving. The Jacket weaving evenly, tidy surface and no jump double-warp, broken double-warp, weft jump and scratch.
Working pressure: 6 bar, 8 bar,10 bar,13 bar,16 bar,18 bar,20 bar,25bar
Hose size:1 inch,1.5 inch,1.75 inch,2 inch,2.5 inch,3 inch,4 inch,5 inch,6 inch,8 inch.(working pressure and size can be customized)
Jacket color: white, red, yellow, blue, and other colors customized; the dyeing of strip can increase wearing resistance.
Jacket length: normal length is 15 m, 20 m, 25 m, 30 m; or it can be customized.
Specification | |||
Lining Material | PVC,Rubber,EPDM/PU/Synthetic Rubber | ||
Jacket Material | High strength polyester staple,polyester filament | ||
Jacket Numbers | Single Jacket/Double Jacket | ||
Jacket Color | white, red, yellow, blue, and other colors customized | ||
Working Pressure | 6bar, 8bar,10bar,13bar,16bar,18bar,20bar,25bar | ||
Hose size | 1 inch,1.5 inch,1.75 inch,2 inch,2.5 inch,3 inch,4 inch,5 inch,6 inch,8 inch,10 inch,12 inch | ||
Hose Length | 15m, 20m, 25m, 30m, 50m, 100m | ||
Hose Coupling | Storz,Gost,John Morris,Machino,etc | ||
Use | Fire Fighting,Irrigation,Agricultural | ||
Certificate & Approval | CCCF |
Model Number | Size (Inch) | Size (mm) | Working Pressure (Bar/PSI) | Bursting Pressure (Bar/PSI) | Length (Meters) |
SP25 | 1" | 25 mm | 8/10/13/16/20 Bar 125/150/190/235/300 PSI | 24/30/39/48/60 Bar 375/450/570/705/900 PSI | 15-30M |
SP40 | 1-1/2" | 40mm | 8/10/13/16/20 Bar 125/150/190/235/300 PSI | 24/30/39/48/60 Bar 375/450/570/705/900 PSI | 15-30M |
SP45 | 1-3/4" | 45mm | 8/10/13/16Bar 125/150/190/235PSI | 24/30/39/48 Bar 375/450/570/705PSI | 15-30M |
SP50 | 2" | 50mm | 8/10/13/16Bar 125/150/190/235PSI | 24/30/39/48 Bar 375/450/570/705PSI | 15-30M |
SP65 | 2-1/2" | 65mm | 8/10/13/16Bar 125/150/190/235PSI | 24/30/39/48 Bar 375/450/570/705PSI | 15-30M |
SP80 | 3" | 80mm | 8/10/13 Bar 125/150/190 PSI | 24/30/39 Bar 375/450/570 PSI | 15-30M |
SP100 | 4" | 100mm | 8/10 Bar 125/150 PSI | 24/30 Bar 375/450 PSI | 15-30M |
SP125 | 5" | 125 mm | 8/10 Bar 125/150 PSI | 24/30 Bar 375/450 PSI | 15-30M |
SP150 | 6" | 150 mm | 8/10 Bar 125/150 PSI | 24/30 Bar 375/450 PSI | 15-3 |
We could supply fire hose, fire hose fittings, spray nozzle, coupling, automatic fire sprinkler system products, gate valves, check valves, ball valves, etc. All these products strictly confirming to JIS, API ans BS standards. All of our products comply with international quality standards and are greatly appreciate in avariety of markets around world. Our factory is covering an area of 15900 square meters, we now over 300 workers. Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarteen total customer satisfaction. As a result of our high quality products and outstanding customer service, we have gained a globe sales network reaching the North America, South America, Mideast, Southeast Asia, East Europe, etc.
1. Could you supply the samples?
Free samples always ready if the value is within our purview.
2.Do you have the MOQ?
For conventional products, Low MOQ.
3. Can you add some logo on the products?
Yes. We could OEM and design your logo.
4. Are you able to design or explore a new products for us?
Yes, we are able to, if the clients could supply the drawings or samples.
